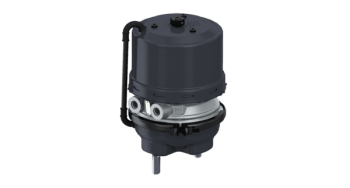

Fjærbremssylinder 24/24

Bolt lengths: 43.0 mm

Bolt threads: M16 x 1.5

Connection port / fitting: M16×1.5

Connection specification: JED-464-0

Distance between bolts: 120.6 mm

Max. operating pressure: 10.0/8.5 bar

Output force service brake: 9.0 kN

Output force spring brake: 5.5-10 kN

Port thread 11: M16 x 1.5 JED - 152, M16 x 1.5 JED - 464-0

Port: working pressure [p emax.]: 11: 10 bar (13 bar), 12: 8.5 bar (11 bar)

Push-rod length: 15 mm

Push-rod thread: Ball R8

Release pressure: 4.9 bar

Return-spring force: 220 N

Stroke: 65/65 mm

Temperature range: -40°C to +80°C

Total length: 286.0 mm

Type: 24/24

Type of operation: Disc

Calculated Volume (dm³): 14.44
